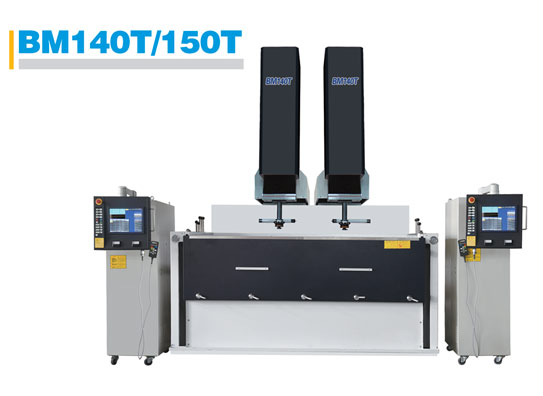

BM140T/150T型镜面火花机
|
主要技术参数Main technical parameters |
|||||
|
机械规格Mechanical specifications |
单位Unit |
BM140T |
BM150T |
||
|
工作台尺寸（长x宽） Table size (length x width) |
mm |
1500x900 |
1600x1000 |
||
|
坐标轴行程 Axis travel |
X轴X axis |
mm |
1450 |
1500 |
|
|
Y轴Y axis |
mm |
700 |
700 |
||
|
Z轴Z axis |
mm |
500 |
500 |
||
|
加工液槽内部尺寸 The internal dimensions of processing tank |
mm |
2300x1300x650 |
2400x1380x650 |
||
|
承重电极重量Maximum electrode weight |
kg |
100 |
≤100 |
||
|
工作台承重量Table bearing weight |
kg |
5000 |
5000 |
||
|
电极板至工作台面距离Distance from electrode plate to working table |
最小 Minimum |
mm |
600 |
650 |
|
|
最大 Maximum |
mm |
1150 |
1150 |
||
|
总输入功率Total input power |
KVA |
10 |
10 |
||
|
输入电源Input power |
V |
380 |
380 |
||
|
加工电流Maximum machining current |
A |
50 |
≤50 |
||
|
控制轴数The number of control axis |
|
三轴三联动Three axis three linkage |
三轴三联动Three axis three linkage |
||
