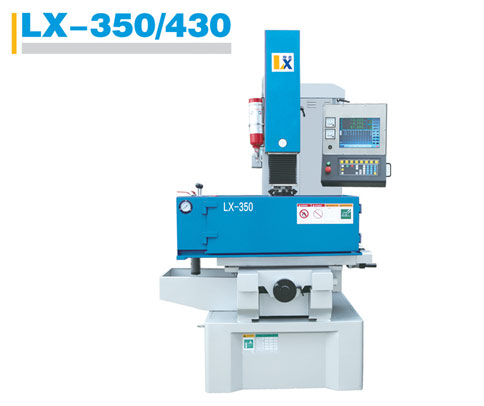

LX-350、430型放电火花机
|
机械规格Mechanical specifications |
单位Unit |
LX-350 |
LX-430 |
|
|
工作台Table size(length x width) |
mm |
600x320 |
650x350 |
|
|
工作槽（XxYxZ） Working slot (XxYxZ) |
mm |
1080x580x350 |
1200x630x410 |
|
|
装满油高度（从工作台算起）Maximum oil level (from table) |
mm |
240 |
≤280 |
|
|
左右行程Longitudinal travel |
mm |
350 |
400 |
|
|
前后行程Lateral travel |
mm |
250 |
300 |
|
|
Z轴行程Vertical travel |
主轴Spindle |
mm |
180 |
200 |
|
辅助行程 Auxiliary travel |
mm |
200 |
200 |
|
|
工作台到电极头平面距离 Maximum distance from worktable to electrode head |
mm |
350 |
≤420 |
|
|
电极重量 Maximum electrode weight |
KGS |
50 |
≤50 |
|
|
工作重量Maximum working weight |
KGS |
700 |
≤1000 |
|
|
机械重量Machine weight |
KGS |
1400 |
1800 |
|
|
装箱尺寸Packing size |
mm |
1460x1490x2230 |
1390x1360x2200 |
|
