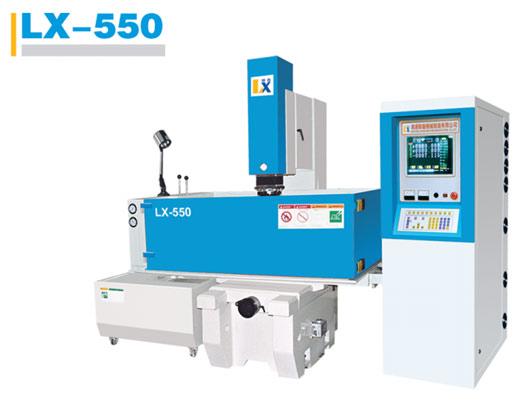

LX-550型放电火花机
|
机械规格Mechanical specifications |
单位Unit |
LX-550 |
|
|
工作台Table size(length x width) |
mm |
1000x500 |
|
|
工作槽（XxYxZ） Working slot (XxYxZ) |
mm |
1420x850x550 |
|
|
装满油高度（从工作台算起） Maximum oil level (from table) |
mm |
≤320 |
|
|
左右行程Longitudinal travel |
mm |
550 |
|
|
前后行程Lateral travel |
mm |
450 |
|
|
Z轴行程Vertical travel |
主轴Spindle |
mm |
250 |
|
辅助行程 Auxiliary travel |
mm |
300 |
|
|
工作台到电极头平面距离 Maximum distance from worktable to electrode head |
mm |
≤640 |
|
|
电极重量 Maximum electrode weight |
KGS |
≤100 |
|
|
工作重量Maximum working weight |
KGS |
≤1500 |
|
|
机械重量Machine weight |
KGS |
2150 |
|
|
装箱尺寸Packing size |
mm |
1490x1460x2200 |
|
